„Błotochron” barrier
U-12a

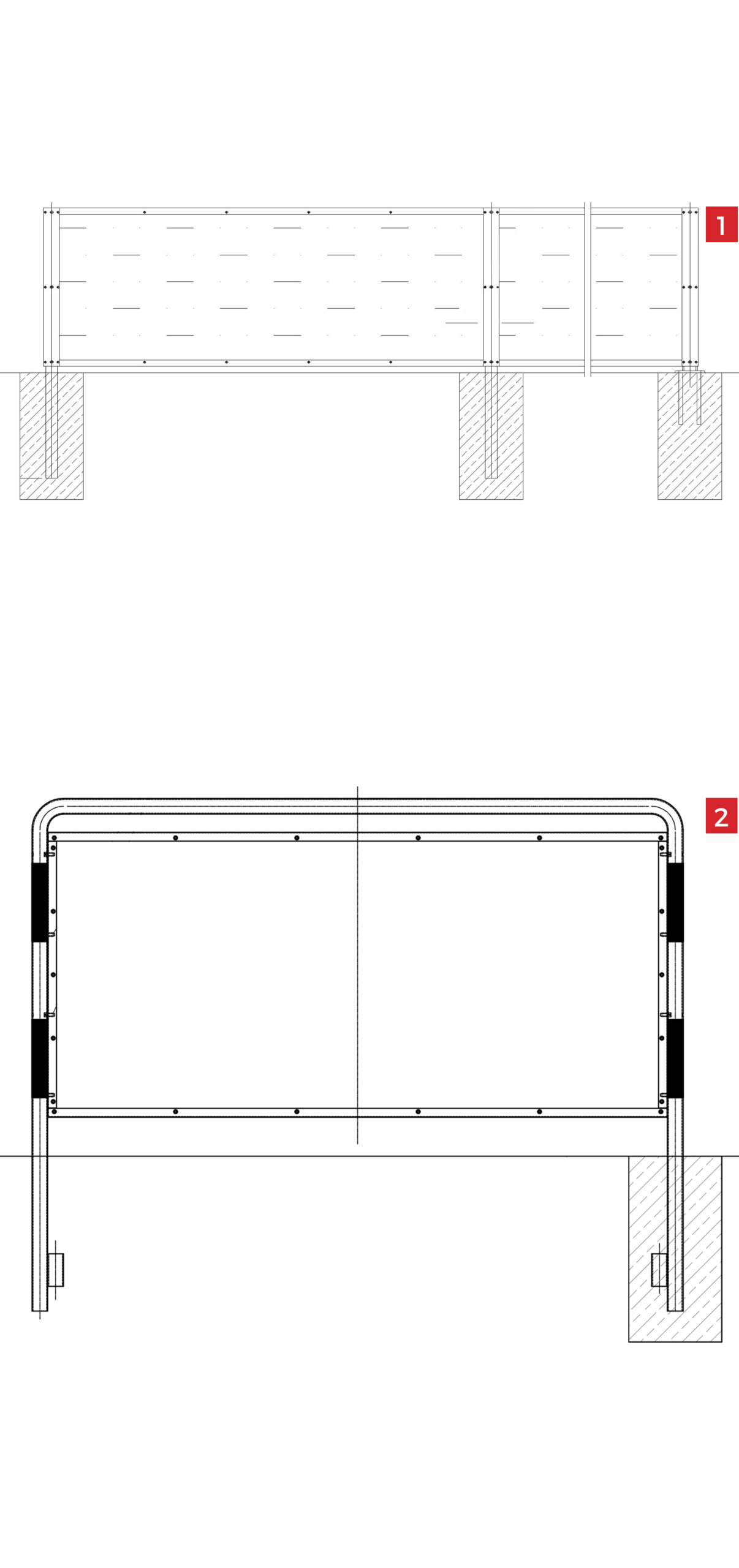

U-12a „Błotochron” fence variant 1:
with a polycarbonate plate fixed in a C-channel cap to a post made of PROLIFE profile. Segment made of a polycarbonate plate, the lower and upper edge of the plate equipped with stiffening caps made of a steel C-channel. Fence segment fixed to support posts using bolt connections. The fence post is mounted in the ground – embedded in a concrete foundation to a depth of min. 400 mm or attached to the substrate using a steel sheet foot.

U-12a „Błotochron” fence variant 2:
with a polycarbonate plate fixed in a C-channel cap to a bent pipe. Segment made of a polycarbonate plate, the lower and upper edge of the plate equipped with stiffening caps made of a steel C-channel. Fence segment fixed to a handrail made of a pipe with a diameter from 48.3 mm to 60.3 mm. The barrier is mounted in the ground – embedded in a concrete foundation to a depth of min. 400 mm or attached to the substrate using a steel sheet foot.

Product features:

• High-quality hot-dip galvanized coating ensures effective protection of steel against corrosion.

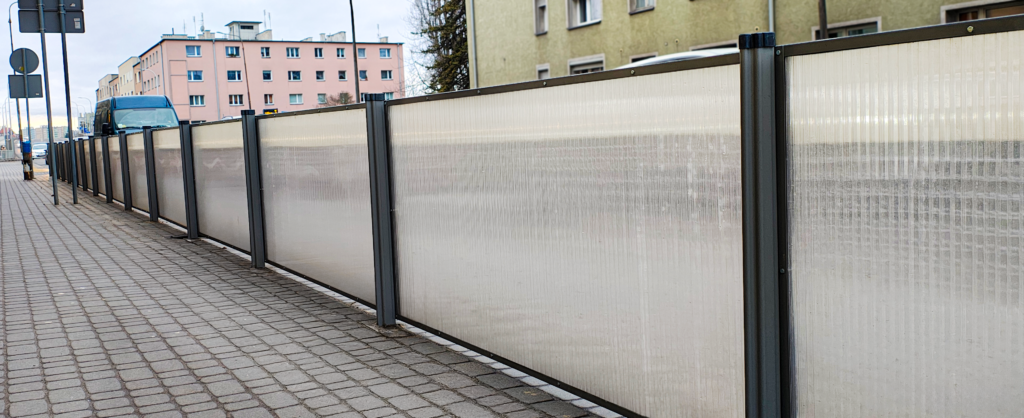

• It protects places such as sidewalks, bicycle paths, building entrances, protecting pedestrians from being splashed with mud, water and pollutants from the roadway.
• Possibility of manufacturing in other, non-standard modules tailored to the specifics of the project.
• Possibility of finishing in any color from the RAL palette, which allows for aesthetic adaptation to the surroundings.
• Railings standardly have an anchor in the lower part and are connected to each other using an M10 bolt.
• Easy assembly, the barrier can be embedded in concrete in the ground or bolted to the substrate using a mounting foot.
