Trailer with VMS
(Variable Message Sign)

The Mobile VMS (Variable Message Sign) Trailer is an advanced tool for providing real-time information to drivers about road conditions. It is ideal for the dynamic protection of roadworks, construction sites, and emergency situations. The LED display, compliant with the EN 12966 standard, ensures excellent visibility both day and night, with readability further enhanced by our proprietary „Stokrotka” (Daisy) LED lamps.

Product Features

• A tablet with a dedicated web application enables remote management of Variable Message Signs, providing full real-time control over operations.
• Two „Stokrotka” (Daisy) high-intensity LED lamps, 300 mm, are integrated at the top of the display.
• Simultaneous support for multiple units allows for easy monitoring and status updates of VMS signs across various locations.
• Users can easily plan and configure a display schedule for automated message sequences.
• An extensive library of standard messages allows for rapid changes to the displayed content.
• The graphical user interface (GUI) enables intuitive content management without the need for additional software installation.
• The integrated content editor allows for quick modification of standard graphics and the creation of personalized messages.
• Equipped with a GPS module and Google Maps integration, the software enables precise tracking and monitoring of VMS units in the field.
• Sophisticated diagnostic functions allow for remote identification and troubleshooting of display errors on VMS screens.
• A dedicated battery box for 4 batteries with an integrated control panel.

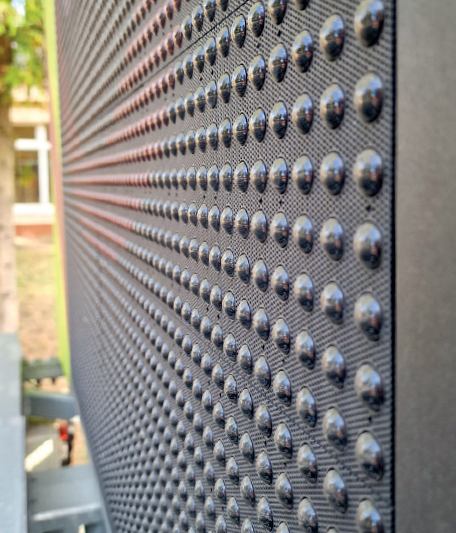

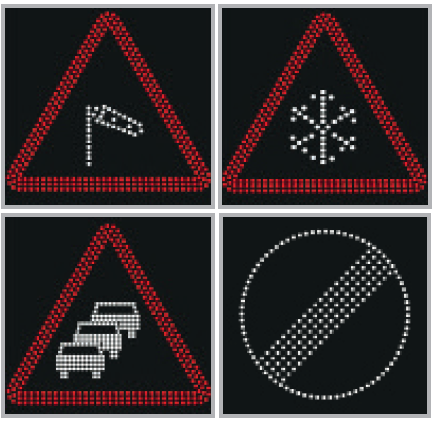

The control system and Variable Message Sign (VMS) are the heart of the unit. The screen itself is a high-contrast LED display, engineered for maximum legibility in all lighting conditions. This technology allows for the instantaneous display of critical messages—ranging from graphical warning signs (e.g., traffic jams or weather alerts) to text-based hazard information—directly enhancing road safety levels.

• Dual independent full-color LED displays, featuring a 20 mm pixel pitch, housed in a durable aluminum frame.
• Upper Display Resolution of 64×64 pixels with dimensions of 1280×1600 mm.
• Lower Display Resolution of 64×80 pixels with dimensions of 1280×1600 mm.
• LED Modules Equipped with specialized lenses providing a B6 beam width in accordance with the EN 12966 standard.
• Maximum Luminance (Brightness): Red>3100 cd/m², Green>3720 cd/m², Blue>7440 cd/m², White>12400 cd/m².
• Power Supply Designed for 12 VDC operation.
• Power Consumption Maximum 600W.
• Average power consumption 240 W.

• Trailer type – Light trailer (O1 category).
• Total length – 3100 mm.
• Structure width – 2250 mm.
• Structure height – 750 mm.
• Wheel track – 1830 mm.
• Axle configuration – Single axle (1 axle).
• Wheels – 2 wheels.
• Weight – Curb weight of 248 kg with a Gross Vehicle Weight (GVW) of 750 kg.
• Charging – Integrated battery charger allowing for direct charging from a 230 VAC outlet.
