Truss support structures
A robust generation of road sign support structures.
WE FOCUS ON Quality!
Truss support structures

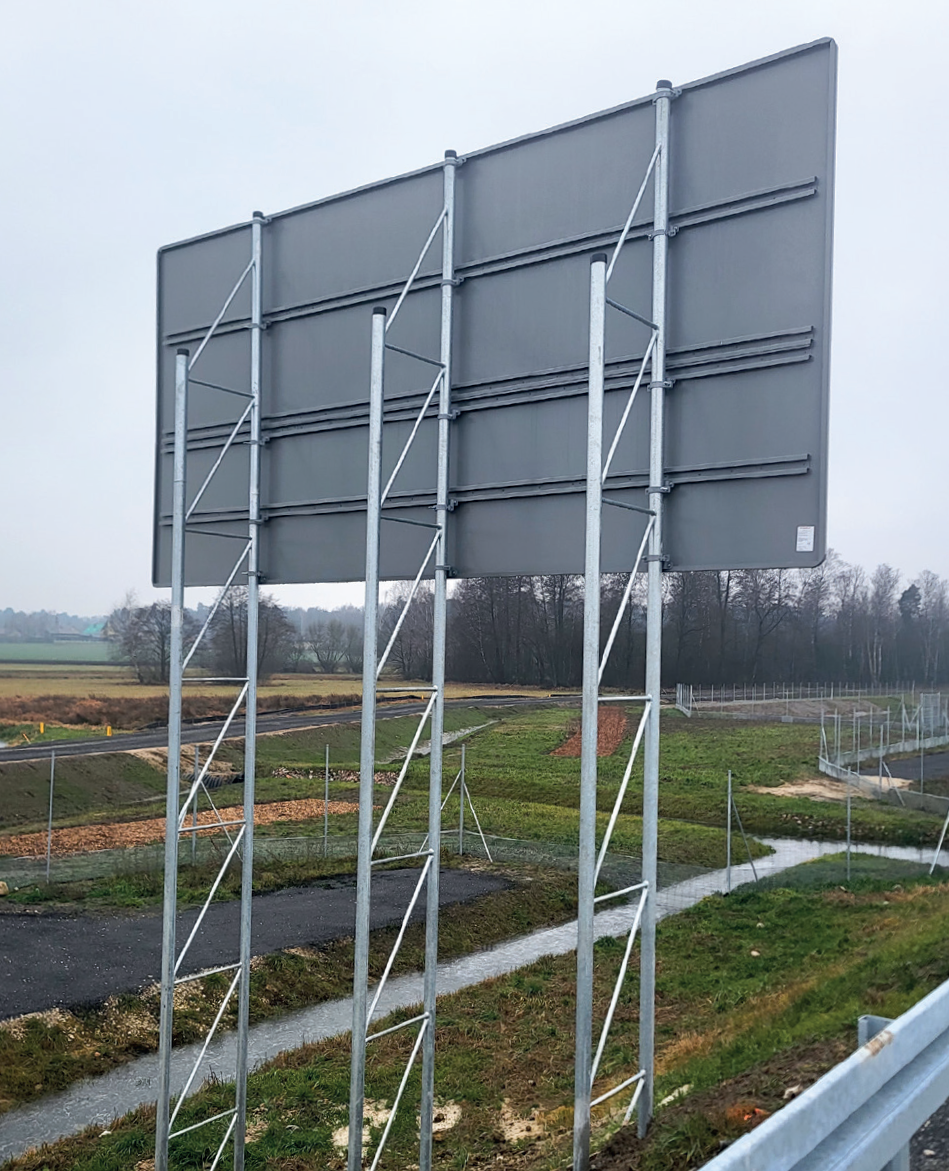

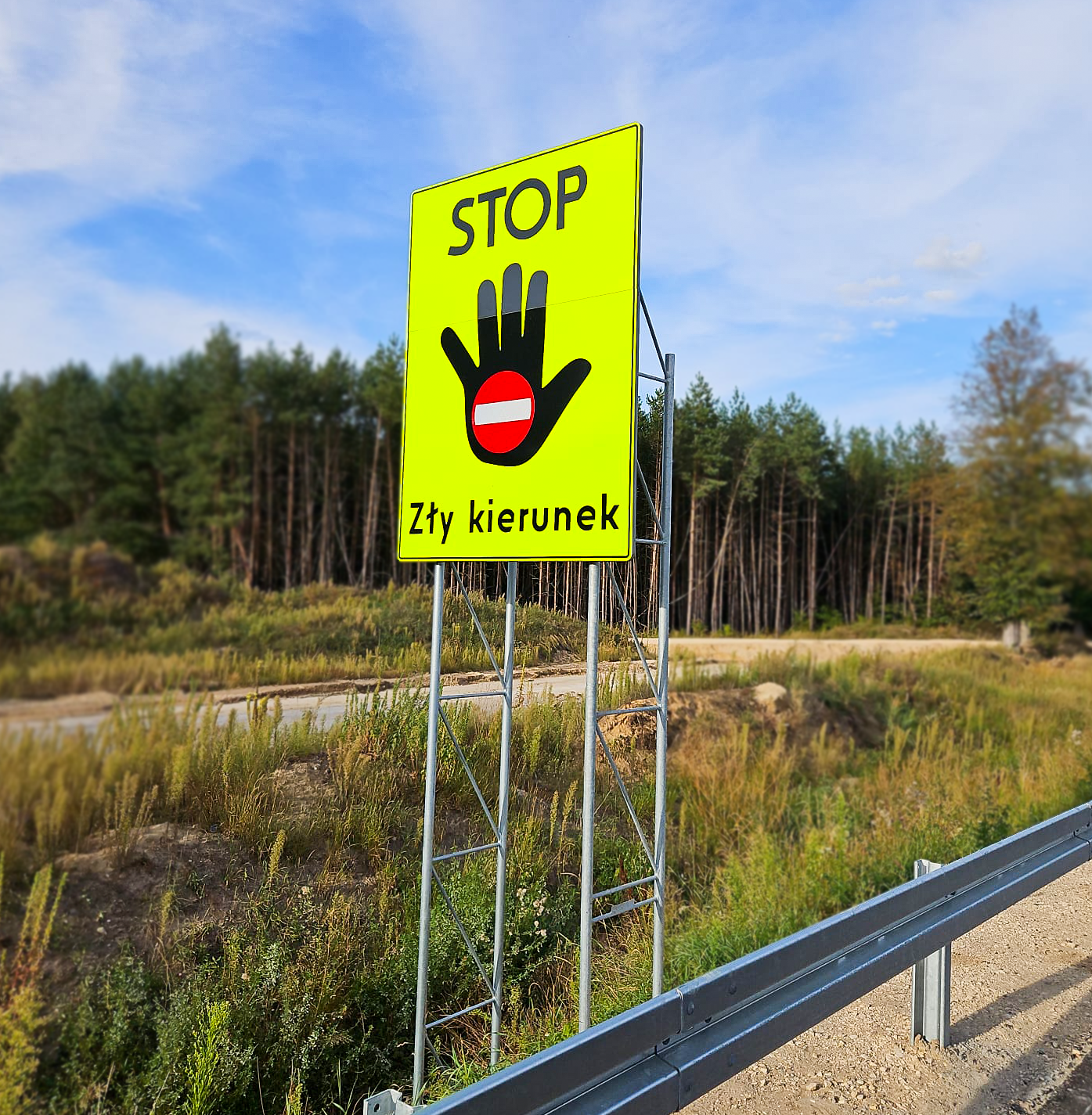

Lattice support structures are one of the primary solutions for roadside signage. These trusses come in various designs and configurations, depending on the sign dimensions and the surrounding terrain. By utilizing an appropriate number of posts and adapting to the roadside cross-section, lattice structures ensure the necessary strength and load-bearing capacity for directional signs. The entire structure is protected by hot-dip galvanizing.
Product features:
- Lattice structures are made of steel tubes and braced with steel rods. The quantity and type of trusses are selected based on the standard design, depending on the sign size, terrain slope, and the wind zone of the specific location.
- The trusses offer high strength combined with low weight; they do not require additional cross-bracing.
- The structure is hot-dip galvanized.
- Foundations are executed according to the structural design. The structure is installed by embedding it directly in the concrete foundation or by bolting it to pre-cast foundation anchors.
- Height is customized according to the project, using support tubes with diameters of 48.3 mm, 60.3 mm, or 76.1 mm.
- The product is placed on the market in accordance with the harmonized standard EN 12899-1. It holds a certificate, a Declaration of Performance, and CE marking.
What sets Wimed structures apart?
Precision Fit
These structures are not „off-the-shelf” products – their type, quantity, and parameters (with support pipe diameters ranging from 48.3 mm to 76.1 mm)... read more
These structures are not „off-the-shelf” products – their type, quantity, and parameters (with support pipe diameters ranging from 48.3 mm to 76.1 mm) are individually selected for each specific location. We take into account not only the size of the sign but, more importantly, the terrain profile and the specific wind zone.
High Rigidity
By utilizing steel pipes latticed with rods, these structures achieve high strength without the need for heavy cross-bracing. This allows the system to... read more
By utilizing steel pipes latticed with rods, these structures achieve high strength without the need for heavy cross-bracing. This allows the system to remain slender and lightweight while fully ensuring the load-bearing capacity required for directional signs.
Certified Durability
Hot-dip galvanization guarantees long-term protection against corrosion. The products comply with the EN 12899-1 standard and carry the CE marking, which confirms their... read more
Hot-dip galvanization guarantees long-term protection against corrosion. The products comply with the EN 12899-1 standard and carry the CE marking, which confirms their full legal and technical safety.
